| | Chevrolet Volando 2020 hybrid Redline 530T Auto zongxiang version(5seats) | Chevrolet Volando 2020 hybrid Redline 530T Auto zongxiang version(5+2) | Chevrolet Volando 2020 hybrid Redline 530T Auto yaoxiang version(5+2) |
| Basic configuration |
| Car class | Compact car | Compact car | Compact car |
| Energy Type | Gasoline+48V hybrid | Gasoline+48V hybrid | Gasoline+48V hybrid |
| Market issue time | 2020.6 | 2020.6 | 2020.6 |
| Max power(kw) | 120 | 120 | 120 |
| Max torch(Nm) | 230 | 230 | 230 |
| Engine | 1.3L 163HP L4 | 1.3L 163HP L4 | 1.3L 163HP L4 |
| gearbox | 6AT | 6AT | 6AT |
| L*W*H(mm) | 4684*1807*1628 | 4684*1807*1627 | 4684*1807*1627 |
| Body structure | 5 Door 5 seats Sedan | 5 Door 7 seats Sedan | 5 Door 7 seats Sedan |
| Maximum speed (km/h) | 190 | 190 | 190 |
| Official 0-100km/h acceleration (s) | | | |
| NEDC comprehensive fuel consumption (L/100KM) | 6.1 | 6.1 | 6.1 |
| WLTC comprehensive fuel consumption (L/100KM) | 6.8 | 6.8 | 6.8 |
| Car Body |
| Longth(mm) | 4684 | 4684 | 4684 |
| width(mm) | 1807 | 1807 | 1807 |
| height(mm) | 1628 | 1627 | 1627 |
| wheel base(mm) | 2796 | 2796 | 2796 |
| front wheel base(mm) | 1540 | 1540 | 1540 |
| rear wheel base(mm) | 1540 | 1540 | 1540 |
| approach angle (°) | 14 | 14 | 14 |
| departure angle (°) | 16 | 15 | 15 |
| Car Structure | Sedan | Sedan | Sedan |
| door opening method | Flat open | Flat open | Flat open |
| Number of doors (PC) | 5 | 5 | 5 |
| Number of seats (PC) | 5 | 7 | 7 |
| Fuel tank volume (L) | 45 | 45 | 45 |
| Trunk volume (L) | 467-1590 | 109-1520 | 109-1520 |
| Curb weight (KG) | 1470 | 1520 | 1520 |
| Maximum full load(kg) | 1920 | 2075 | 2075 |
| Engine |
| engine model | LIY | LIY | LIY |
| Displacement (mL) | 1349 | 1349 | 1349 |
| Displacement (L) | 1.3 | 1.3 | 1.3 |
| Intake form | Turbocharged | Turbocharged | Turbocharged |
| engine layout | Tap | Tap | Tap |
| Cylinder arrangement | L | L | L |
| Number of cylinders (pcs) | 3 | 3 | 3 |
| Valves per cylinder (PC) | 4 | 4 | 4 |
| Air distribution structure | DOHC | DOHC | DOHC |
| Maximum horsepower (Ps) | 163 | 163 | 163 |
| Maximum power (KW) | 120 | 120 | 120 |
| Maximum power speed (rpm) | 5500 | 5500 | 5500 |
| Maximum torque (NM) | 230 | 230 | 230 |
| Maximum torque speed (rpm) | 1800-4400 | 1800-4400 | 1800-4400 |
| Maximum Net Power (kW) | 115 | 115 | 115 |
| fuel form | Gasoline+48V hybrid | Gasoline+48V hybrid | Gasoline+48V hybrid |
| fuel label | 92 | 92 | 92 |
| Oil supply method | Multi-point EFI | Multi-point EFI | Multi-point EFI |
| cylinder head material | Aluminum alloy | Aluminum alloy | Aluminum alloy |
| Cylinder material | Aluminum alloy | Aluminum alloy | Aluminum alloy |
| Environmental Standards | China VI | China VI | China VI |
| Transmission |
| Number of gears | 6 | 6 | 6 |
| Transmission type | AT | AT | AT |
| short name | 6AT | 6AT | 6AT |
| Chassis steering |
| drive mode | Front wheel drive | Front wheel drive | Front wheel drive |
| Front suspension type | Macpherson independent suspension | Macpherson independent suspension | Macpherson independent suspension |
| rear suspension type | Multi-link independent suspension | Multi-link independent suspension | Multi-link independent suspension |
| boost type | Electric assist | Electric assist | Electric assist |
| Body structure | load bearing | load bearing | load bearing |
| wheel braking |
| Front brake type | ventilated disc | ventilated disc | ventilated disc |
| rear brake type | disc | disc | disc |
| Parking brake type | Elecctric parking | Elecctric parking | Elecctric parking |
| Front tire specification | 225/50/R17 | 225/50/R17 | 225/50/R17 |
| rear tire specification | 225/50/R17 | 225/50/R17 | 225/50/R17 |
| Spare tire specification | Non-full size | Non-full size | Non-full size |
| Active/passive safety equipment |
| Main/passenger airbags | Driver● /Vice driver ● | Driver● /Vice driver ● | Driver● /Vice driver ● |
| Front/rear side airbags | Front● | Front● | Front● |
| Front/rear head airbags (curtain) | | | |
| Knee air sac | | | |
| Tire pressure monitoring function | Tire pressure alarm | Tire pressure alarm | Tire pressure alarm |
| Seat belt reminder | ● Front | ● Front | ● Front |
| ISOFIX child seat interface | ● | ● | ● |
| ABS anti-lock | ● | | ● |
| Brake force distribution (EBD/CBC) | ● | ● | ● |
| Brake Assist (EBA/BAS/BA) | ● | ● | ● |
| Traction Control(ASR/TCS/TRC) | ● | ● | ● |
| Body stability control(ESC/ESP/DSC) | ● | ● | ● |
| Parallel Auxiliary | | | ● |
| Lane Departure Warning System | | | |
| Lane Keeping Assist | | | |
| Keep the lane centered | | | |
| Active Braking/Active Safety System | | | |
| Fatigue driving alarm | | | |
| Assist/Control configuration |
| Front/rear parking radar | Rear ● | Rear ● | Rear ● |
| Driving assistance video | | | |
| Reversing side warning system | | | |
| Cruise system | ●cruise control | ●cruise control | ●cruise control |
| Driving mode switching | | | |
| Automatic parking | | | |
| Engine start-stop technology | ● | ● | ● |
| Automatic hold | | | |
| Hill assist | ● | ● | ● |
| Steep descent | | | |
| Assisted driving level | | | |
| External / Anti-Theft Configuration |

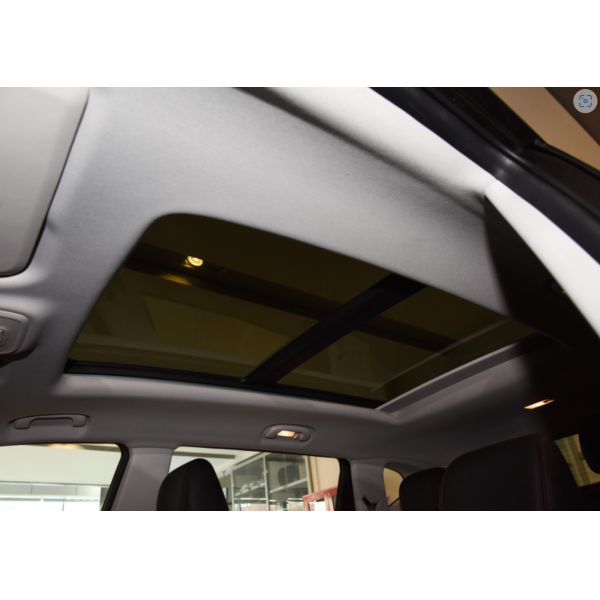

| Sunroof type | ●Openable panoramic sunroof | ●Openable panoramic sunroof | ●Openable panoramic sunroof |
| Sport Appearance Kit | ● | ● | ● |
| Rim material | Aluminum Alloy | Aluminum Alloy | Aluminum Alloy |
| Electric trunk | | | |
| Electric trunk position memory | | | |
| roof rack | ● | ● | ● |
| Engine electronic anti-theft | ● | ● | ● |
| interior central lock | ● | ● | ● |
| key type | Remote Key | Remote Key | Remote Key |
| keyless start system | ● | ● | ● |
| Keyless entry function | | | |
| Remote start function | ● | ● | ● |
| Internal configuration |
| Steering wheel material | ●Genuine Leather | ●Genuine Leather | ●Genuine Leather |
| Steering wheel position adjustment | ● Manual up and down adjustment | ● Manual up and down adjustment | ● Manual up and down adjustment |
| Shift form | ●Mechanical gear shift | ●Mechanical gear shift | ●Mechanical gear shift |
| Multifunction steering wheel | ● | ● | ● |
| steering wheel shift | | | |
| Steering wheel heating | | | |
| Trip computer display screen | ●colourful | ●colourful | ●colourful |
| Full LCD Dashboard | | | |
| LCD meter size | ●3.5'' | ●3.5'' | ●3.5'' |
| HUD header digital display | | | |
| Seat configuration |
| seat material | ●Leather | ●Leather | ●Leather |
| Sports style seat | | | |
| main seat adjustment | ● Front and rear adjustment
●Backrest adjustment
●Height adjustment (2-way) | ● Front and rear adjustment
●Backrest adjustment
●Height adjustment (2-way) | ● Front and rear adjustment
●Backrest adjustment
●Height adjustment (2-way) |
| Assistant seat adjustment | ● Front and rear adjustment
●Backrest adjustment | ● Front and rear adjustment
●Backrest adjustment | ● Front and rear adjustment
●Backrest adjustment |
| Main/passenger seat electric adjustment | | | |
| front seat function | | | ●Heating |
| Passenger seat rear adjustable button | | | |
| Second row seat adjustment | | ● Front and rear adjustment
●Backrest adjustment | ● Front and rear adjustment
●Backrest adjustment |
| Seat layout | | ●2-3-2 | ●2-3-2 |
| Rear seats folded down | Proportion down | Proportion down | Proportion down |
| Front/rear center armrest | Front● | Front● | Front● |
| rear cup holder | | | |
| Multimedia configuration |
| Central control color screen | ●Touch LCD screen | ●Touch LCD screen | ●Touch LCD screen |
| Central control screen size | ●8'' | ●8'' | ●8 |
| GPS | ● | ● | ● |
| Navigation traffic information display | ● | ● | ● |
| roadside assistance call | ● | ● | ● |
| Bluetooth phone | ● | ● | ● |
| Phone connect/mapping | ●CarPlay
●CarLife | ●CarPlay
●CarLife | ●CarPlay
●CarLife |
| voice recognition system | ●Multimedia
●GPS
●Phone
●AC | ●Multimedia
●GPS
●Phone
●AC | ●Multimedia
●GPS
●Phone
●AC |
| Vehicle Intelligent System | ●OS | ●OS | ●OS |
| Internet of Vehicles | ● | ● | ● |
| OTA upgrade | ● | ● | ● |
| WI-FI Hotpot | ● | ● | ● |
| Multimedia/charging interface | ●USB
⭕SD | ●USB
⭕SD | ●USB
⭕SD |
| Number of USB Type-C ports | ●Front 2/Rear 2 | ●Front 2/Rear 2 | ●Front 2/Rear 2 |
| Luggage compartment 12V power interface | | | |
| Speaker Brand | | | |
| Speaker Qty | ●6 | ●6 | ●6 |
| Mobile APP remote control | ● | ● | ● |
| Lighting configuration |
| low beam light source | ●LED | ●LED | ●LED |
| high beam light source | ●LED | ●LED | ●LED |
| Lighting Features | | | |
| LED daytime running lights | ● | ● | ● |
| Adaptive near and far light | | | |
| automatic headlights | ● | ● | ● |
| Front fog lights | | | |
| Headlight rain and fog mode | | | |
| Headlight height adjustable | ● | ● | ● |
| headlight cleaning device | | | |
| Headlights delay turn off | ● | ● | ● |
| touch reading light | | | |
| Glass/Rearview mirror |
| Front/rear power windows | Front● /Rear ● | Front● /Rear ● | Front● /Rear ● |
| One window lift function | ●Whole car | ●Whole car | ●Whole car |
| Window anti-pinch function | ● | ● | ● |
| Multilayer soundproof glass | | | |
| Outside rearview mirror function | ● Electric adjustment
●mirror heating | ● Electric adjustment
●mirror heating | ● Electric adjustment
●mirror heating |
| Inside rearview mirror function | ●Manual anti-glare | ●Manual anti-glare | ●Manual anti-glare |
| interior vanity mirror | ●Voice driver | ●Voice driver | ●Voice driver |
| Rear side privacy glass | | | |
| rear wiper | ● | ● | ● |
| Sensor wiper function | | | |
| Air conditioner/refrigerator |
| Air conditioner temperature control method | ●Auto AC | ●Auto AC | ●Auto AC |
| Rear independent air conditioner | | | |
| rear air outlet | ● | ● | ● |
| temperature zone control | | | |
| Air purifier for car | | | |
| PM2.5 filter device in car | ● | ● | ● |
| Negative ion generator | | | |
